320M
Portable
322M
320M
- Temperature range from -20°C up to 650°C
- Easy to use: autorange, hotspots, areas
- Mix/PictureInPicture (IR with Visible) technology
- Video storage and Radiometric Images on TF 64 Gb memory card
- Integrated voice annotation, text and QR code
Template
Temperature range
Video resolution
NETD
Focus
Display resolution
Bluetooth
Wi-Fi
Prodotti
Template
326M
Temperature range
-20°C to 650°C
Video resolution
384x288
NETD
0,04
Focus
Manual
Display resolution
320x240
Bluetooth
Yes
Wi-Fi
Yes
Template
325M
Temperature range
-20°C to 650°C
Video resolution
320x240
NETD
0,04
Focus
Manual
Display resolution
528x396
Bluetooth
Yes
Wi-Fi
Yes
Template
323M
Temperature range
-20°C to 650°C
Video resolution
264x198
NETD
0,04
Focus
Manual
Display resolution
640x480
Bluetooth
Yes
Wi-Fi
Yes
Template
322M
Temperature range
-20°C to 550°C
Video resolution
160x120
NETD
0,06
Focus
Manual
Display resolution
786x576
Bluetooth
Yes
Wi-Fi
Yes
Technical specifications
Temperature/measure field
From -20°C to 650°C
Spectral band
7-14μm
Size/weight
243mm*95mm*142mm - 730g
Battery
3.6V，5000mAh Li-battery
Relative humidity
<95%RH
Vibrations & Shocks
2g(GB/T 2423.10/IEC 60068-2-6); 25g(GB/T 2423.5/IEC 60068-2-27)
Degree of protection
IP54
Power supply
Support Type-C interface charging method, from power adaptor or computer.
Thermal resolution
Up to 384x288 (30Hz)
Image resolution
Up to 768x576
Thermal Sensitivity
NETD 0,04 °C
Display
LCD Touch da 3,5"
Description

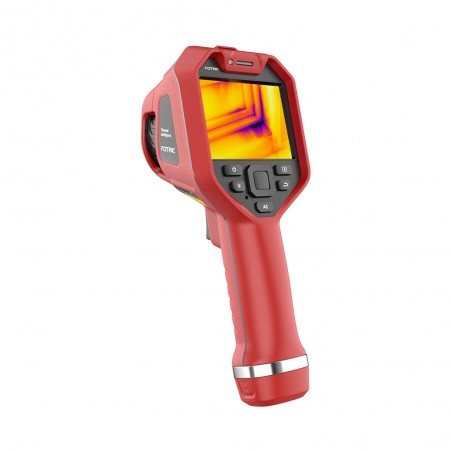

320M series portable professional thermal imaging camera with focus, compact, high performance and universal.
Perform inspections in more industries with its extended intelligent range, from -20 to 650°C; powered with TWB image balancing technology for more intuitive inspections.
More alternatives on working distances: Evaluate electrical targets with a 25° lens; Work in confined spaces or mount larger targets with a 49° and 46° wide angle lens.
Record and listen to valuable voice annotations using the Bluetooth headset; add important written notes to videos and images. Responsive 3.5" LCD touch screen and fast user interface for a smooth professional experience. Lightweight and compact design that fits in any toolbox or overall pocket.
Find problems faster with Tap Scale mode to reveal hidden details; organizes images of the same resources by scanning QR-Codes for automatic naming.
Automatic one-click reports via FOTRIC AnalyzIR software; easy sharing of JPEG thermal images with embedded temperature values; radiometric video recording on the device; transfers images in seconds via Wi-Fi or memory card (64GB).
